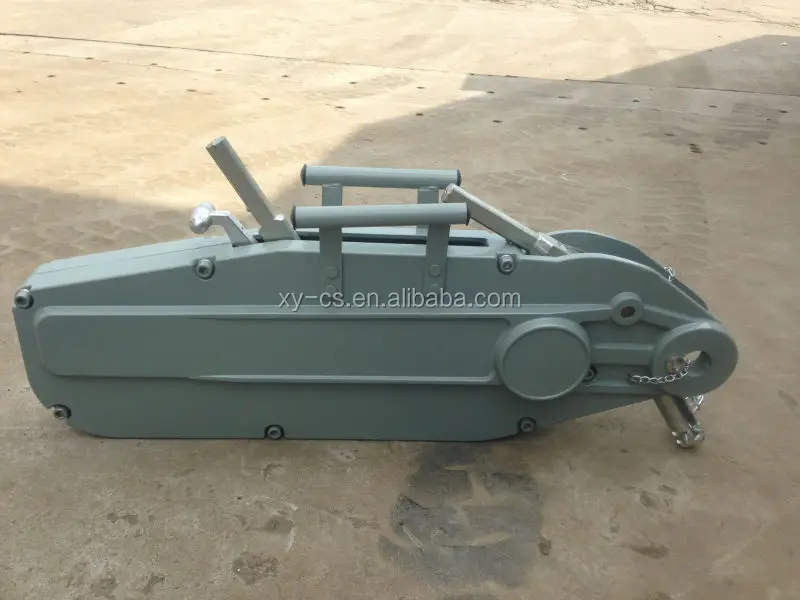

Hand Power Source Lever Tractor Winch with 5.4T Capacity and 20M Lifting Height for Wire Rope Pulling

Name: Hand Power Source Lever Tractor Winch with 54T Capacity and 20M Lifting Height for Wire Rope Pulling
Brand: Xinya
Price: 1 USD

Wholesale Hand Power Source Lever Tractor Winch with 5.4T Capacity and 20M Lifting Height for Wire Rope Pulling from china suppliers

Model Number : 5400

Brand Name : Xinya

Place of Origin : Jiangsu, China

MOQ : 1

Power Source : Hand

Capacity : 0.8-5.4T

Max Lifting Load : 5.4T

Max Lifting Height : 20M

Sling Type : Wire Rope

Lift Speed : manual

Rated Hand Power : 341-745N

Rated Capacity : 800-5400KG

Rated Forward Travel : ≥28-≥55MM

Rope Diameter : 8.3-20MM

Wire Rope Safety : 5 TIMES

Max Travelling Load : 1200-8000KG

Net Weight : 6.4-56KG

Max Outer Size A : 426-930MM

Max Outer Size B : 238-480MM

Contact Now

Lever Tractor Tifor Type Hoisting Winch, Wire Rope Pulling Hoist

Use and Characteristic

1) Capacity: 0.8T x 20M, 1.6T x 20M, 3.2T x 20M, 5.4T x 20M.

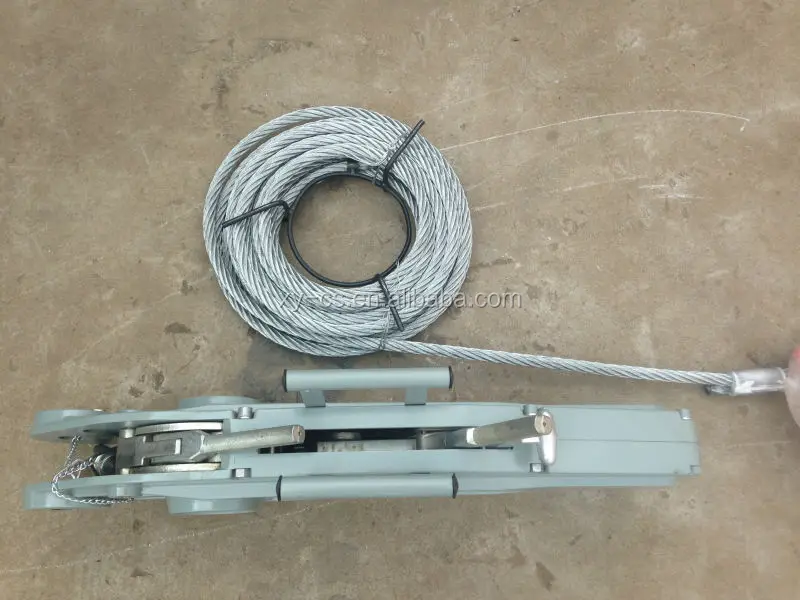

2) All hoists are supplied complete with 20 meter wire rope and an extendable operating lever.
3) Wire rope is tapered one end and fitted with a hook and safety catch at the other end.
3) The hoist has low maintenance requirements and is easy service.
4) Overload protection ensures high personal safety when in operation.
5) Specially built-in shear pins can be replaced without removing the load.

Technical Data for Lever Tractor Tifor Type Hoisting Winch, Wire Rope Pulling Hoist

Model item	VIT-800	VIT-1600	VIT-3200	VIT5400
Rated forward hand power(N)	341	438	438	745
Rated capacity(KG)	800	1600	3200	5400
Rated forward travel(MM)	≥52	≥55	≥28	≥30
Rope diameter(MM)	8.3	11	16	20
Wire rope safty factor load capacity(TIMES)	5	5	5	5
Max travelling load(KG)	1200	2400	4000	8000
Net weight(KG)	6.4	12	28	56
Max outer size(MM) A	426	545	660	930
B	238	284	325	480
C	64	97	116	152
L1(CM)		80	80	68
L2(CM)	80	120	120	112
Packing (LWH)(CM)	436.424	54.59.729	661235	11011073
