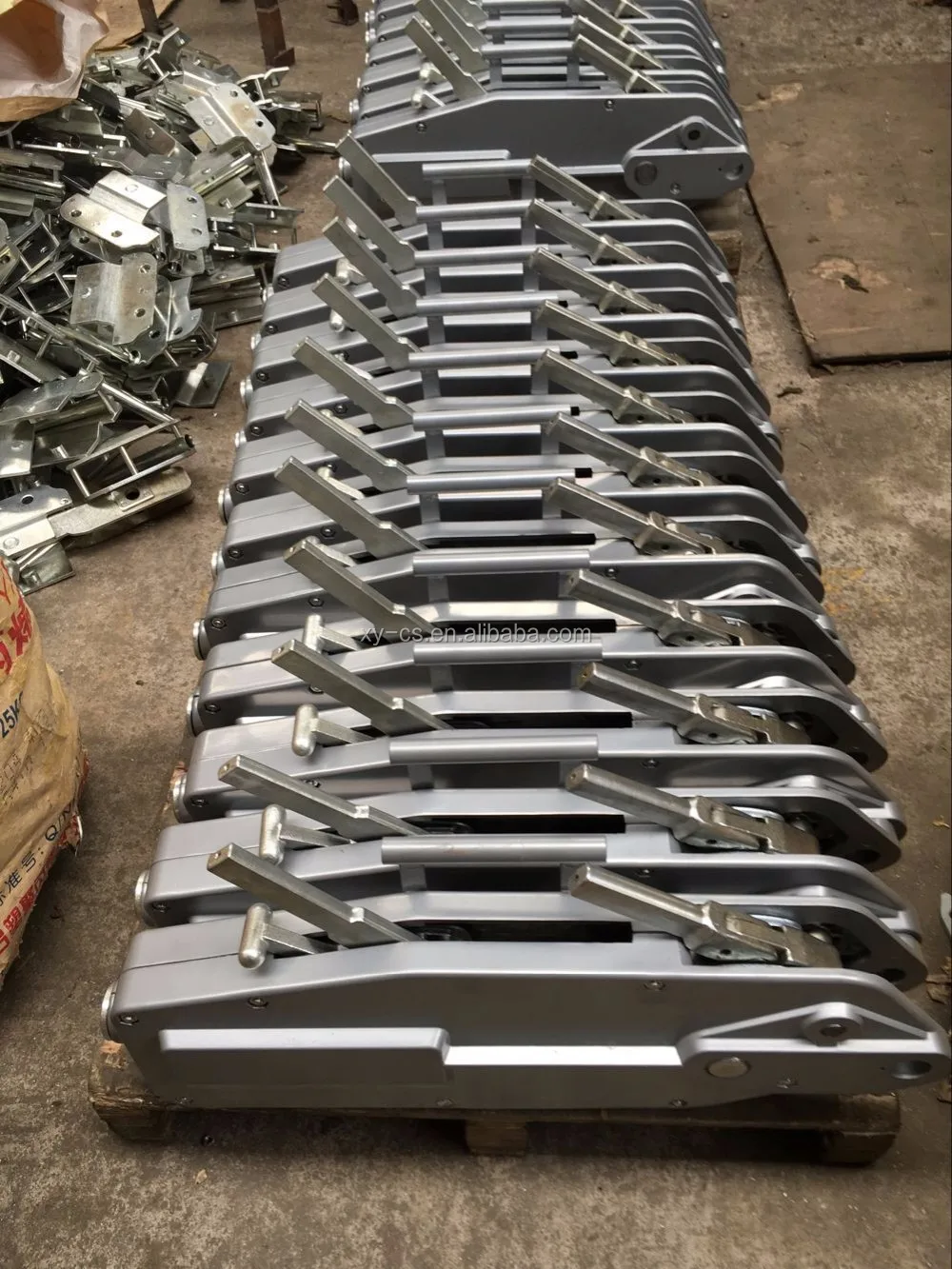

0.8 Ton Mini Hand Winch with Steel Wire Rope and 20m Lifting Height for Construction Hoist
Premium Products
0.8 Ton Mini Hand Winch with Steel Wire Rope and 20m Lifting Height for Construction Hoist
1
2
3
Brand Name :Xinya
Place of Origin :Jiangsu, China
Certification :CE GS
MOQ :1
Price :$60-65
Lifting Speed :Hand
Sling Type :Wire Rope
Power Source :Lever, Hand
Max Lifting Height :20m
Max Lifting Load :0.8T
Rope Diameter :8.3mm
Wire Rope Safety :5 Times
Net Weight :6.4kg
Max Outer Size A :426mm
Max Outer Size B :238mm
Max Outer Size C :64mm
Packing Dimensions :43*6.4*24cm
Rated Hand Power :341N
Rated Capacity :800kg
Rated Travel :≥52mm
Contact Now
Cable Pulling Tools Mini Hand Winch For Sale With Steel Wire Rope
Use and Characteristic
1. Capacity: 0.8T x 20M, 1.6T x 20M, 3.2T x 20M, 5.4T x 20M. 2. All hoists are supplied complete with 20 meter wire rope and an extendable operating lever. 3. Wire rope is tapered one end and fitted with a hook and safety catch at the other end. 4. The hoist has low maintenance requirements and is easy service. 5. Overload protection ensures high personal safety when in operation. 6. Specially built-in shear pins can be replaced without removing the load.
Technical Data
Model item
VIT-800
VIT-1600
VIT-3200
VIT5400
Rated forward hand power(N)
341
438
438
745
Rated capacity(KG)
800
1600
3200
5400
Rated forward travel(MM)
≥52
≥55
≥28
≥30
Rope diameter(MM)
8.3
11
16
20
Wire rope safty factor load capacity(TIMES)
5
5
5
5
Max travelling load(KG)
1200
2400
4000
8000
Net weight(KG)
6.4
12
28
56
Max outer size(MM) A
426
545
660
930
B
238
284
325
480
C
64
97
116
152
L1(CM)
80
80
68
L2(CM)
80
120
120
112
Packing (L*W*H)(CM)
43*6.4*24
54.5*9.7*29
66*12*35
110*110*73
Detail Introduction
Hand winch is a kind of small-sized, compact, hand-operated lifting tool. It' s features is light weight, compact structrue, wide range of applications and easy maintenance. This type of hoist is suitable to use outdoor sites under advise circumstances.

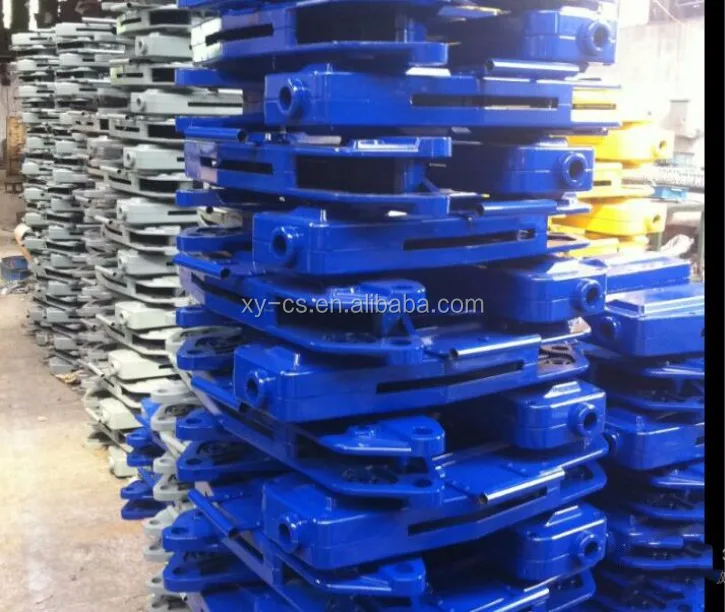

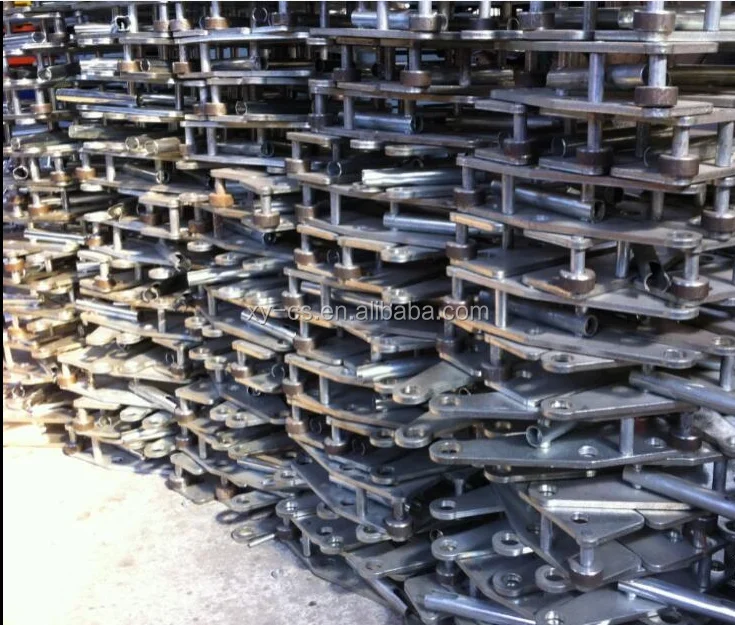

The housing of the hoist is made of aluminum alloy, thus producing adequate strength, light in weight and making it quite portable, while the component parts inside are made of high quality alloyed steel with advanced technology. Strict quality control test have been carried out on all the component parts. As for the major parts subject to high tension are tested according to ISO standards even with overloading to ensure top quality.
It is a kind of newly designed, uncomplicated structured, convenient-to-use lever hoist with the function of adjusting the beneath-hook quickly, safe and reliable. its new style, beautiful body, good braking performance and high working efficiency enable it to be able to be widely used in factory, mineral, building site, Harbor and transportation areas and so on. It is the ideal equipment for Equipment installation, object fixing, tying and towing, world famous qualified product both home and aboard.
